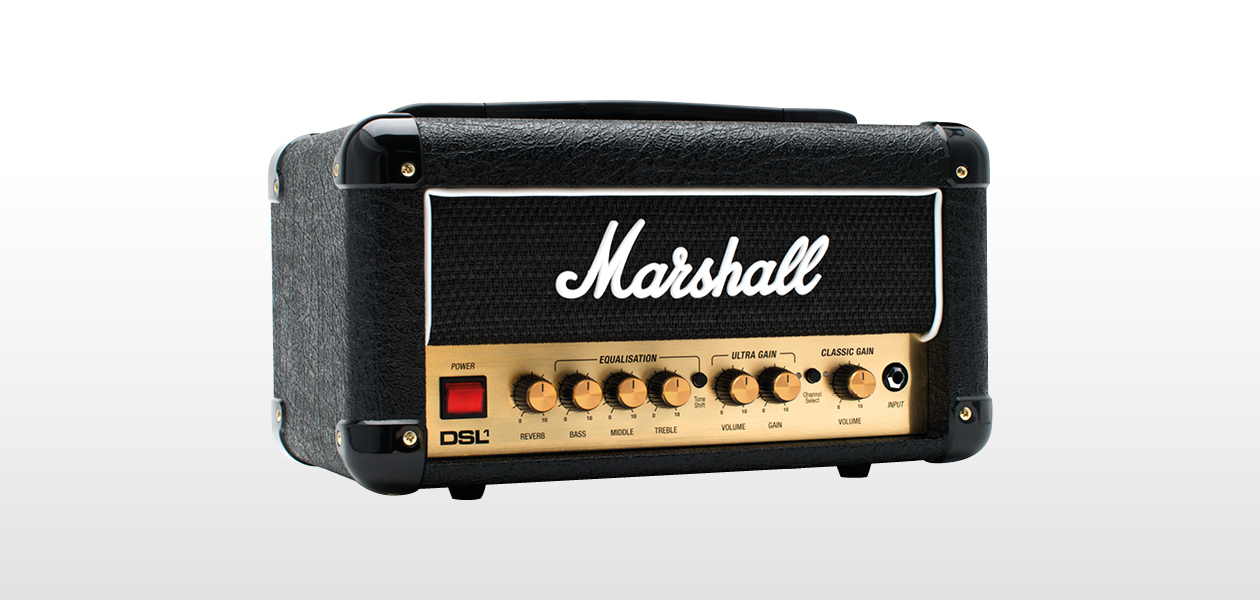

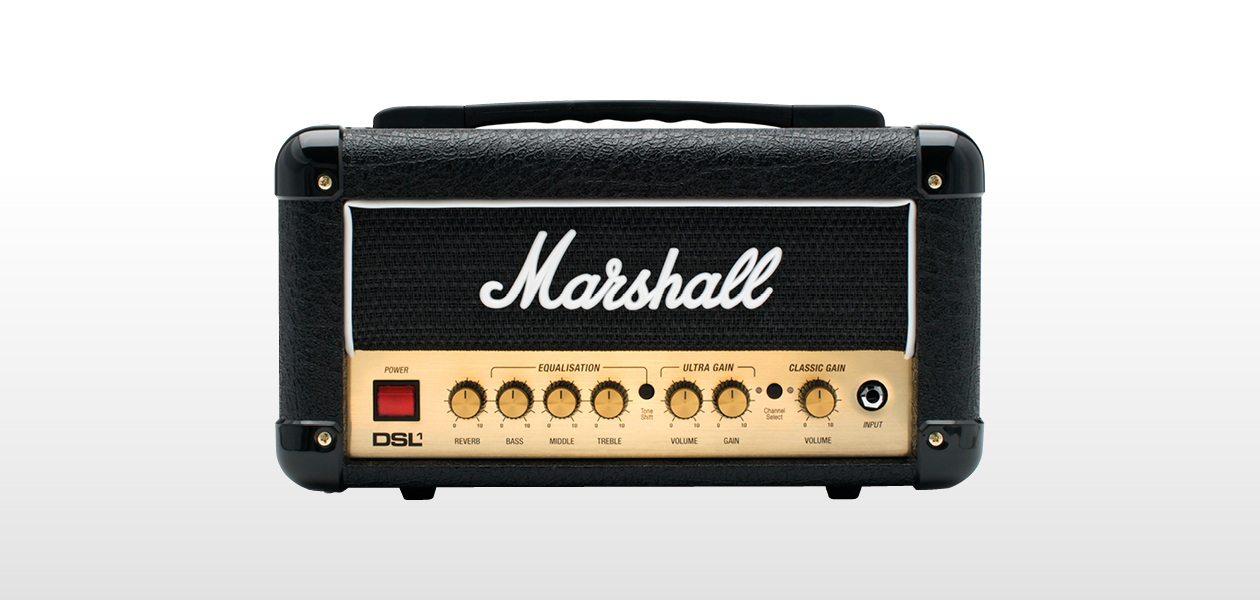

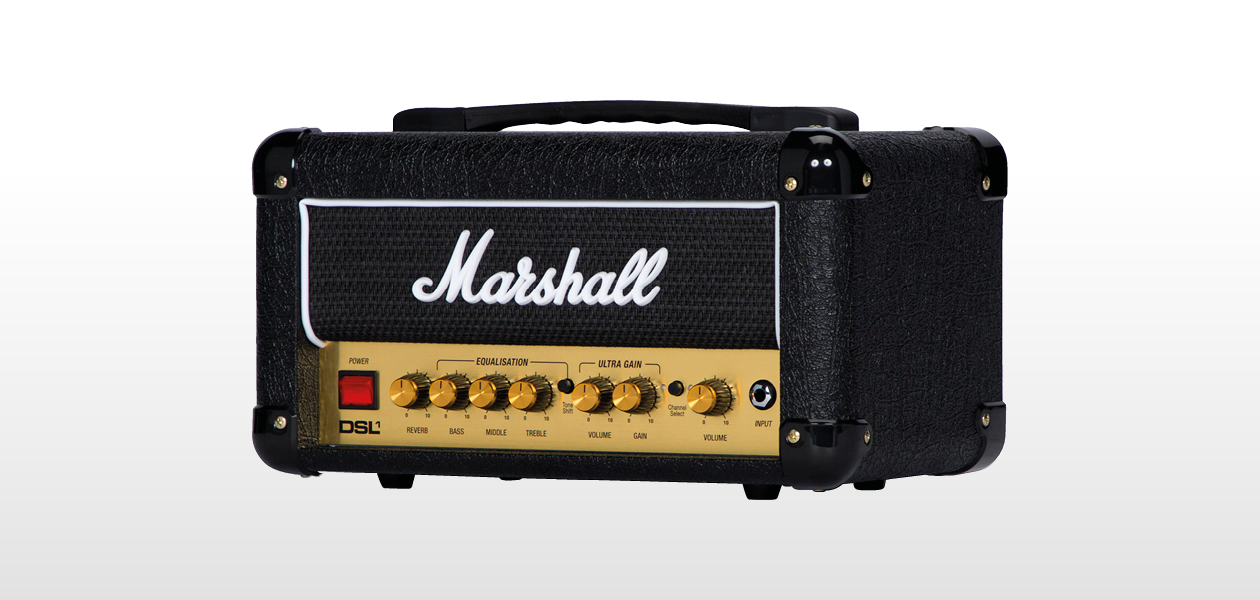

DSL1H

The DSL1HTM has the classic Marshall tone and features expected on a DSL but at a lower power to suit those who play at home. The sound has been perfectly crafted to suit those with eclectic tastes, looking for tonal experimentation.

Previous Next

Key Features

Play at home

There is the ability to reduce from 1w to 0.1w and use the emulated output for recording or headphones, we have specifically engineered the DSL1 for a great sound at low levels.

Select your sound

Create the music you want using the studio quality reverb, tone shift and FX loop.

Choose your tone

Using the two footswitchable gain channels you can go from clean, classic tones to those with added distortion and extra bite.

Technical Specification

General
Model
DSL1HR
Range
DSL
Technology
Valve
Channels
2, ultra gain and classic gain
Electronics
Output wattage
1W with optional power reduction to 0.1W

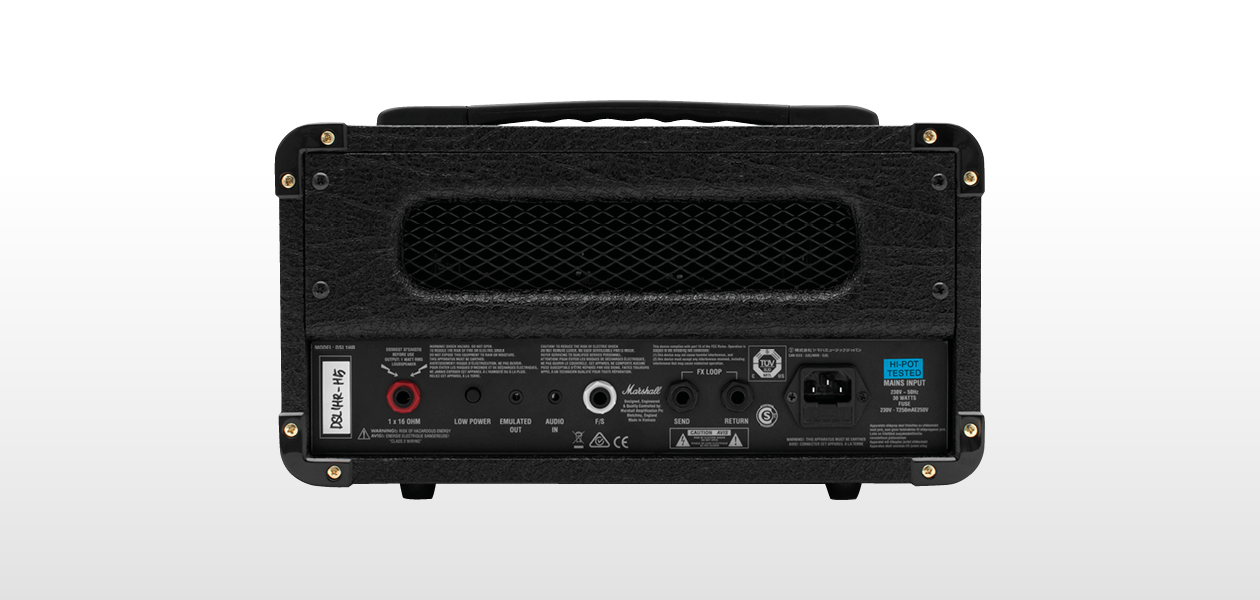

Outputs
1 x 1/4" jack speaker output, 16Ω load only, 1 x 3.5mm jack emulated line out
Inputs
1 x 1/4" instrument jack, 1 x 3.5mm jack aux in, footswitch
Controls
Classic gain channel with volume, ultra gain channel with gain and volume control, channel select switch, tone shift switch, treble, middle, bass, reverb and power reduction option
Effects
Digital reverb
Effects loop
Yes, series, send/return
Valves
Preamp valves
2 x ECC83
Power amp valves
1 x ECC82
Accessories
Footswitch
PEDL-90011 included
Cable
Detachable power cable included
Dimensions (including feet and handle)
Weight
5.6 kg / 12 lbs
Width
360 mm / 14.2"
Height
210 mm / 8.3"
Depth
215 mm / 8.5"
