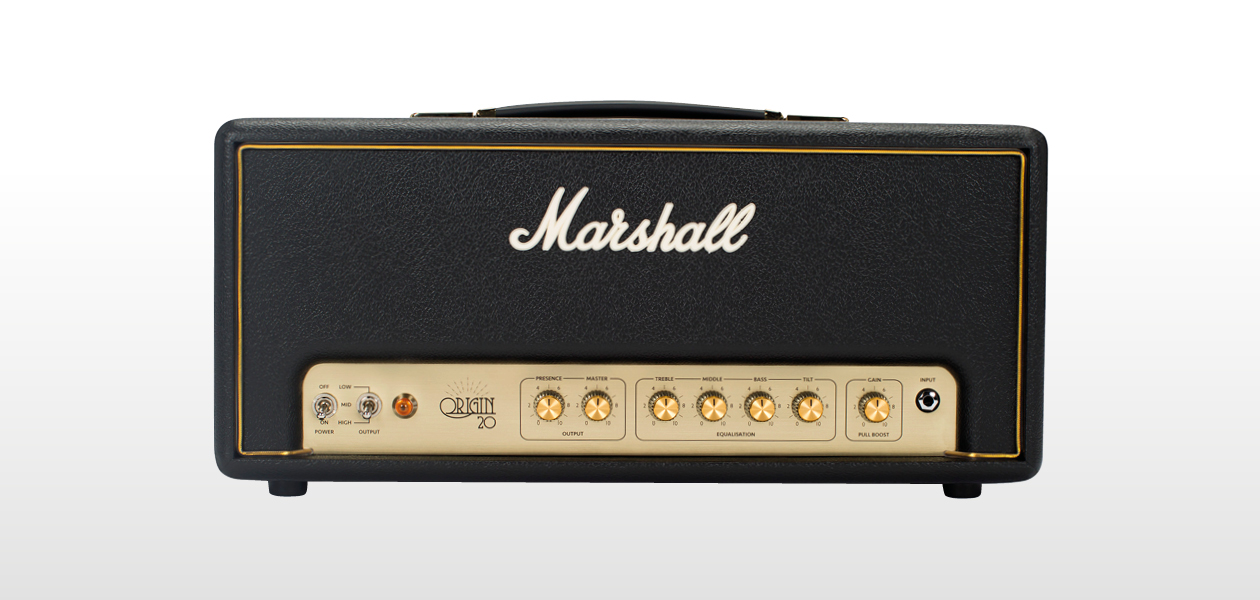

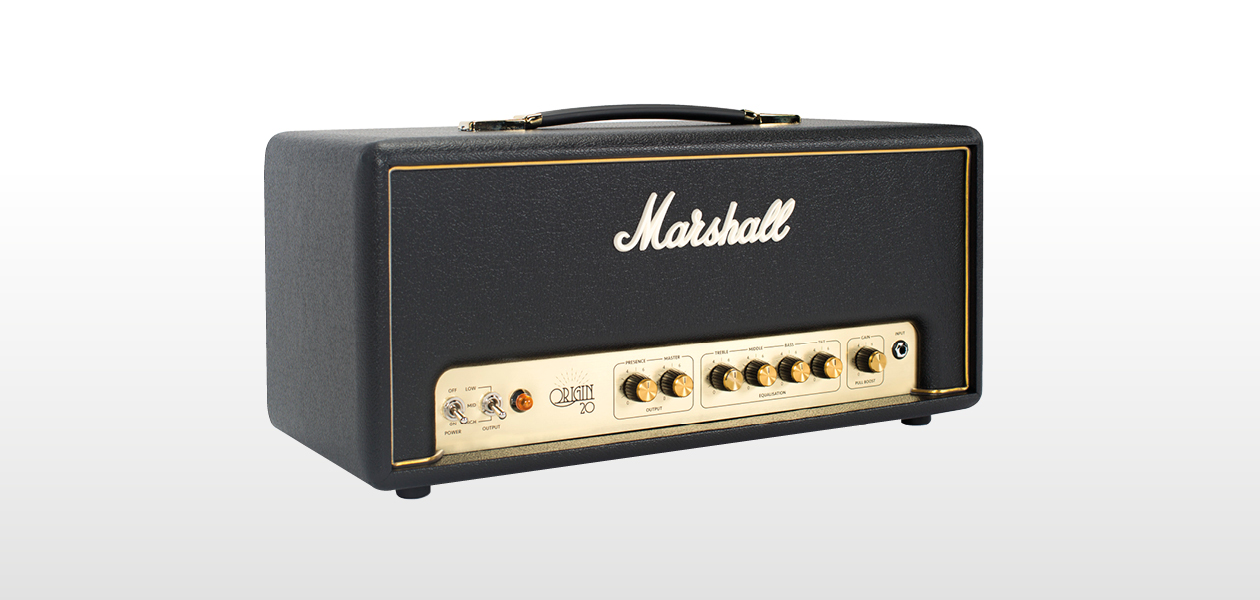

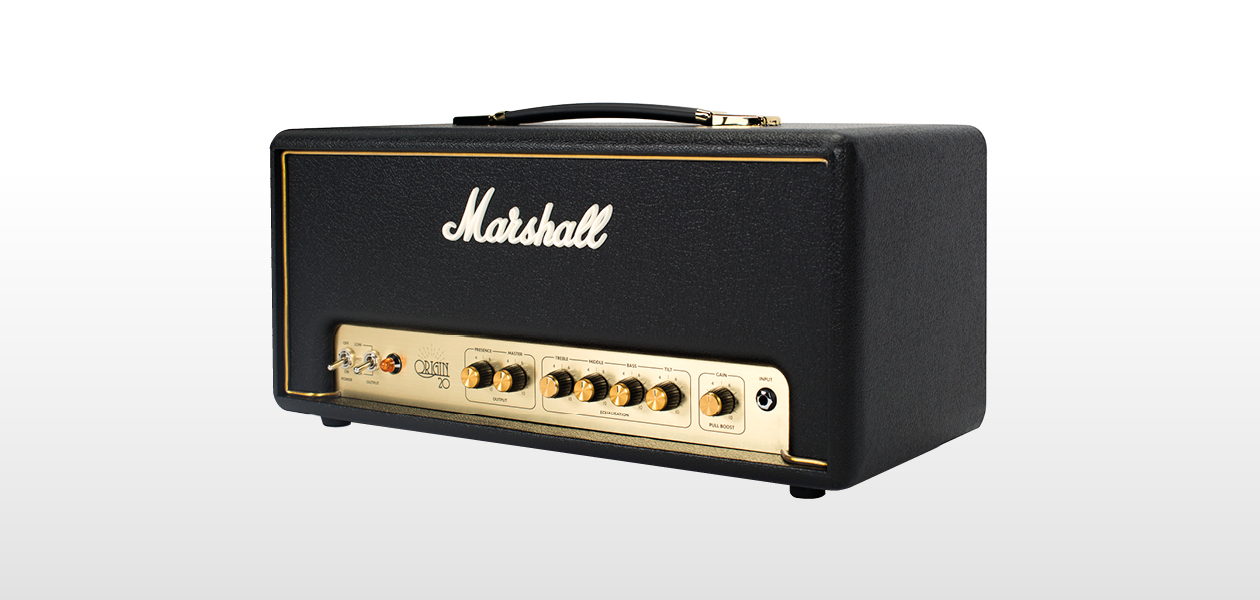

Origin20H

Express your personality with this 20W head. The Origin20HTM provides a classic all-valve, rich and harmonic tone. With sleek styling and modern features this amp is ideal for playing in different environments from bedroom to rehearsal studios and small venues. There is a 2-way footswitch available so you can control the gain boost feature and turn the FX loop on and off.

Previous Next

Key Features

Add a little boost

The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.

You have the power

To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, PowerstemTM, allows you to have high, medium or low power modes.

Tilt your sound

With one channel, this amp still offers a variety of tones. By using the tilt control you can vary your sound from normal to high treble to access the one you prefer.

Control your tone

Increasing the master volume can give you that classic overdrive sound and using the presence control you can increase the high frequency.

Technical Specification

General
Model
Origin20H
Range
Origin
Technology
Valve
Channels
1
Electronics
Output wattage
High power 20W, mid power approx 3W and low power approx 0.5W

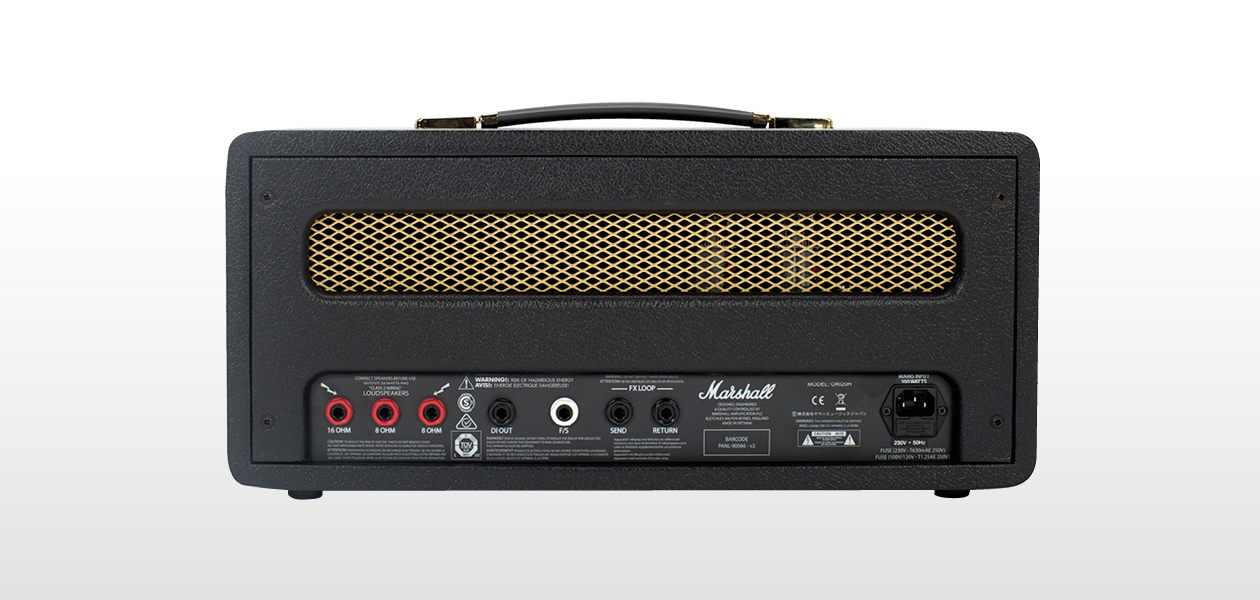

Outputs
Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), DI out (1/4" jack)
Inputs
1 x 1/4" jack instrument input, footswitch
Controls
Gain, boost, tilt, bass, middle, treble, master, presence, powerstem
Effects
None
Effects loop
Yes, Series, Send/Return
Valves
Preamp valves
3 x ECC83
Power amp valves
2 x EL34
Accessories
Footswitch
PEDL-90016 included
Dimensions (including feet and handle)
Weight
9.4 kg / 21 lbs
Width
520 mm / 20.5"
Height
225 mm / 8.9"
Depth
220 mm / 8.7"
